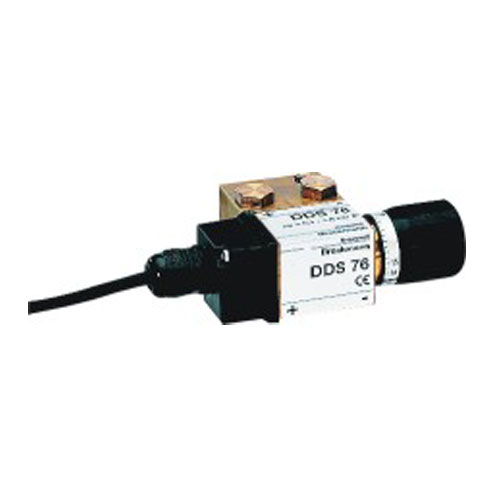

Honeywell DDS76 Fark Basınç Presostatı

Ürün Özellikleri :
Application
The DDS76 differential pressure switch takes over control of the reverse rinsing operation on the Honeywell F76, F76S and F76S-F filters in conjunction with an automatic reverse rinsing actuator with volt-free contacts.Special Features
Easy setting of the differential pressure
Simple assemblyRange of Application
Medium Water
Setting range 0.1 to 1.6 bar (set at 1.0 bar during manufacture)

Technical Data
Cable 1 meter with connector bush
Maximum static pressure* 25.0 bar
Maximum static operating pressure* 16.0 bar
Maximum permissible temperature of medium
+ 70 °C
Maximum permissible ambient
temperature + 80 °C
Microswitch ysteresis Approximately 2 %
Maximum microswitch loading Umax = 24 V Imax = 0.8 A Pmax = 19.2 W
Filtrasyon, sterilizasyon, filtre sistemleri, sterilizasyon sistemleri, filtreler, endüstriyel sistem filtreleri.

Ürün Açıklaması :
Materials
High quality synthetic material housingConstruction
Suitable for:
F76, F76S fine filters
In conjunction with the Z11S automatic reverse rinsing actuator
F76S-F fine filters with flanges
In conjunction with the Z11AS automatic reverse rinsing actuator
