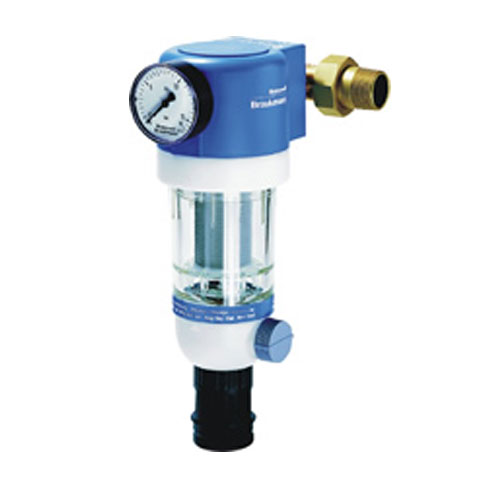

Honeywell F74C Çelik Kartuşlu Su Filtresi

Honeywell F74C Çelik Kartuşlu Su Filtresi

Ürün Özellikleri :
F 74 C reverse rinsing filters ensure a continuous supply of
filtered water. The fine filter prevents the ingress of foreign
bodies, for example rust particles, strands of hemp and
grains of sand.

F 74 C fine filters are used in systems where an existing
pressure reducing valve is fitted or where one is not required
(maximum static pressure 5.0 bar according to DIN 4109).
Both horizontal and vertical installation is possible.

Special Features
Tested to European standards
Filtered water supplied even during reverse rinsing
Patented reverse rinsing system – fast and thorough cleaning of the filter with small amount of water
Memory ring indicates time when next reverse rinsing is due
Bayonet connection enables simple retro-fitting of reverse rinsing actuator
Large filter surface
Shock resistant clear synthetic material filter bowl enables easy inspection of filter contamination
Filter insert fully interchangeable
Very simple operation
Servicing and maintenance without removal from the pipework
Reliable and tested

Filtrasyon, sterilizasyon, filtre sistemleri, sterilizasyon sistemleri, filtreler, endüstriyel sistem filtreleri.

Ürün Açıklaması :
The fine filter comprises:
Housing with pressure gauge
Threaded male connections
Rotatable connector piece with flange seal and fixing screws
Clear filter bowl
Fine filter
Ball valve with drain connection
Ring wrench for filter bowl

Synthetic material housing
Brass screw connections
Red bronze connector piece
Stainless steel fine filter
Shock-resistant, clear synthetic material filter bowl
NBR seals
